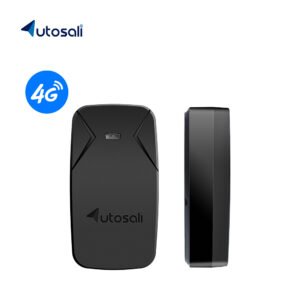

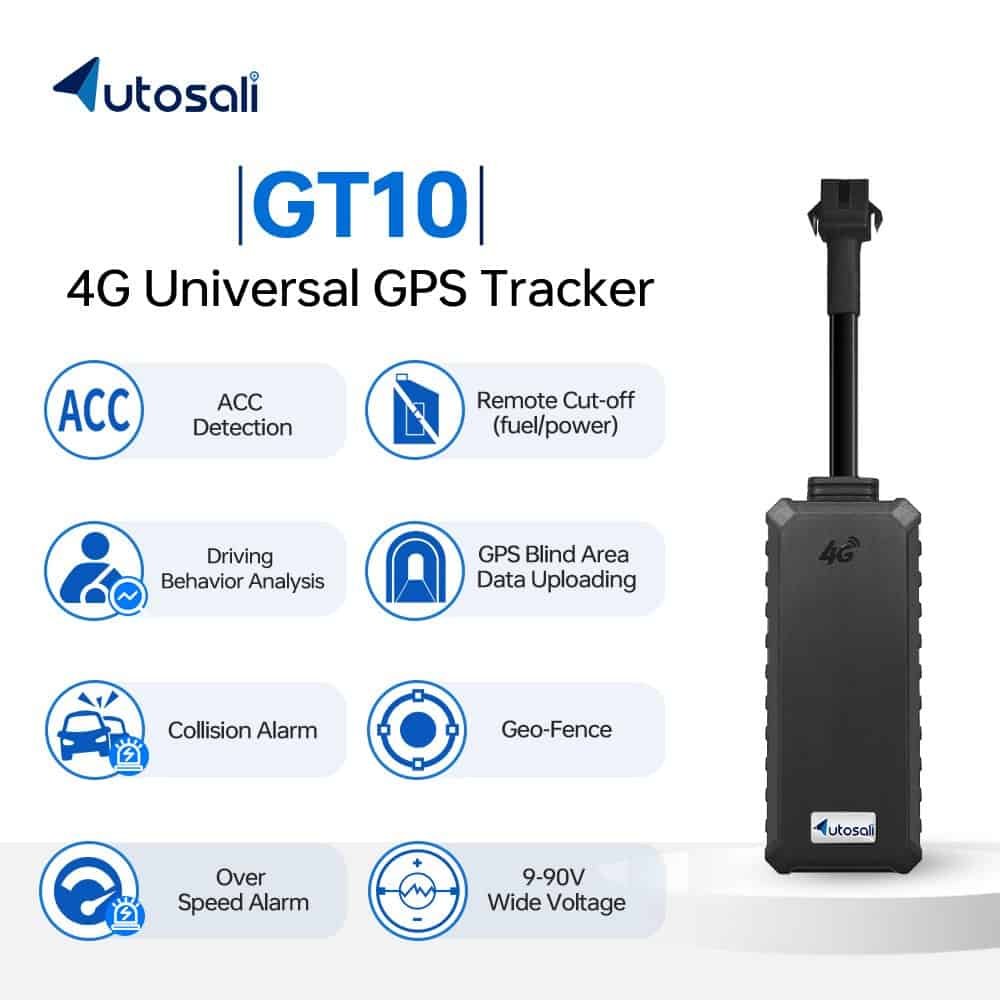

Autosali 4G Wired Tracker GT10 4pin
| Model | GT10 4pin |
|---|---|
| Wight | 40g |
| Size | 79mm * 33mm * 16mm |
| Operating voltage | 9~95V |
| Built-in battery | 60mAh |
| Frequency Bands | LTE-FDD/4G B1/B2/B3/B4/B5/B7/B8/B28/B66 |
| IP Grade | IP65 |
| CLASS | FUNCTION | DESCRIPTION |
| Electrical Features | Mode of Power supply | Supply of power |
| Operating voltage | DC 9V - 95V | |
| Working current | 12V/Average 35mA | |
| Sleep current | 12V/Less than 10mA | |
| Built-in battery capacity | 60mAh (Soft pack lithium battery) | |
| Communication Features | GSM/2G | 850/900/1800/1900MHz |
| LTE-FDD/4G(SA) | B1/B2/B3/B4/B5/B7/B8/B28/B66 | |
| LTE-FDD/4G(SC) | B1/B3/B5/B8 | |
| LTE-TDD/4G(SC) | B38/B39/B40/B41 | |
| Antenna | FPC | |
| Communication module chip | SIMCOM A7670 | |
| Range of operating temperature | -20℃ - 75℃ | |
| Range of storage temperature | -30℃ - 80℃ | |
| Range of operating humidity | 10%-85% RH | |
| Positioning Features | Positioning module chip | AT6558R |
| Positioning mode | GPS&BDS | |
| Cold start time | 32s | |
| Hot start time | 1s | |
| Tracking sensitivity | -162 dBm | |
| Capture sensitivity | -147 dBm | |
| Antenna specification | Ceramic 18mm * 18mm * 4mm | |
| GPS frequency range | L1: 1575.42±1.023MHz | |
| Beidou frequency range | B1: 1561.098±2.046MHz | |
| Number of satellite channels | 64 | |
| Positioning accuracy | <10m（1σ） | |
| Timing accuracy | <30ns（1σ） | |
| Speed measurement accuracy | <0.1m/s（1σ） | |
| Maximum acceleration | 4g | |
| Maximum speed | 515m/s | |
| Maximum height | 18000m | |

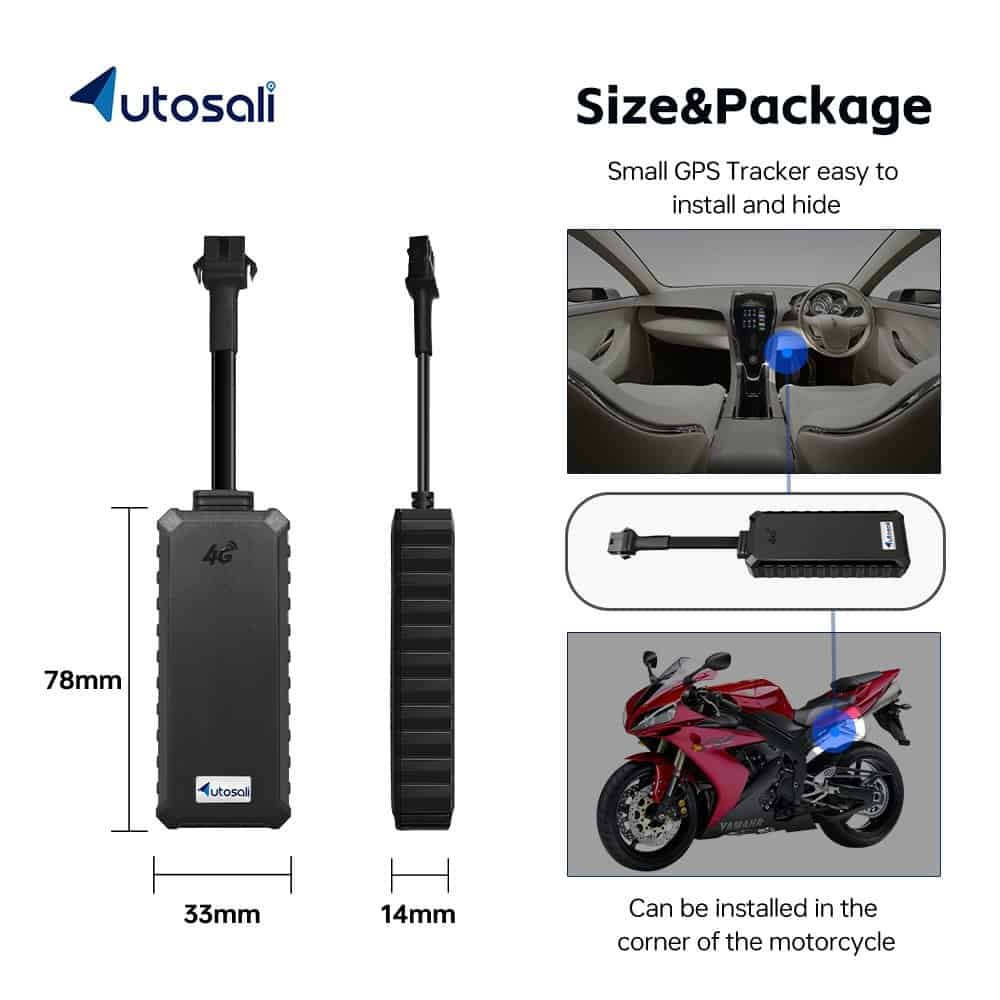

| Outside specification | Size | 79mm(L) *33mm(W)*16mm(H) |
| Weight | 40g | |
| Material | ABS |
| NO. | FUNCTION | DESCRIPTION |
| 1 | Real Time Tracking | More precise positioning with high performance chipset.Update position every 10 seconds with continuous tracking. |
| 2 | Historical Playback | Support up to 3 months' historical track, operate through platform or APP. |
| 3 | GEO Fence | After setting the area of the GEO Fence, APP will receive an alarm when entering or exiting this fence |
| 4 | Oil Remotely Cut Off | Remotely Cut off/supply fuel remotely through server or SMS. |
| 5 | ACC Detection | Uploaded data include the ACC on/off status each time. |
| 6 | Power off Alarm | Turn on backup battery, Power off will receive an alarm. |
| 7 | Over-speed Alarm | When vehicle is over speed, device will upload an alarm to the server. |
| 8 | Driving Behavior Detection | The driver's behavior report, such as rapid acceleration/deceleration and sharp turn,could be detected and generate on platform, see the overall behavior of your fleet.(Thisfunction can be turned on or off) |
| 9 | Vibration Alarm | Turn on backup battery，the device will be in defense automatically after power off 5 minutes (time can be set), you will receive an alarm if it will vibrate. |
| 10 | SOS Alarm (8 Wires) | You can set 3 SOS numbers. Hold down the SOS button for about 3 secs. The SOS number will receive the SOS alarm. |
| 11 | Blind Area Data Upload | Data will be stored up to 300pcs in places with poor signal, and upload stored datawhen signal is good. |

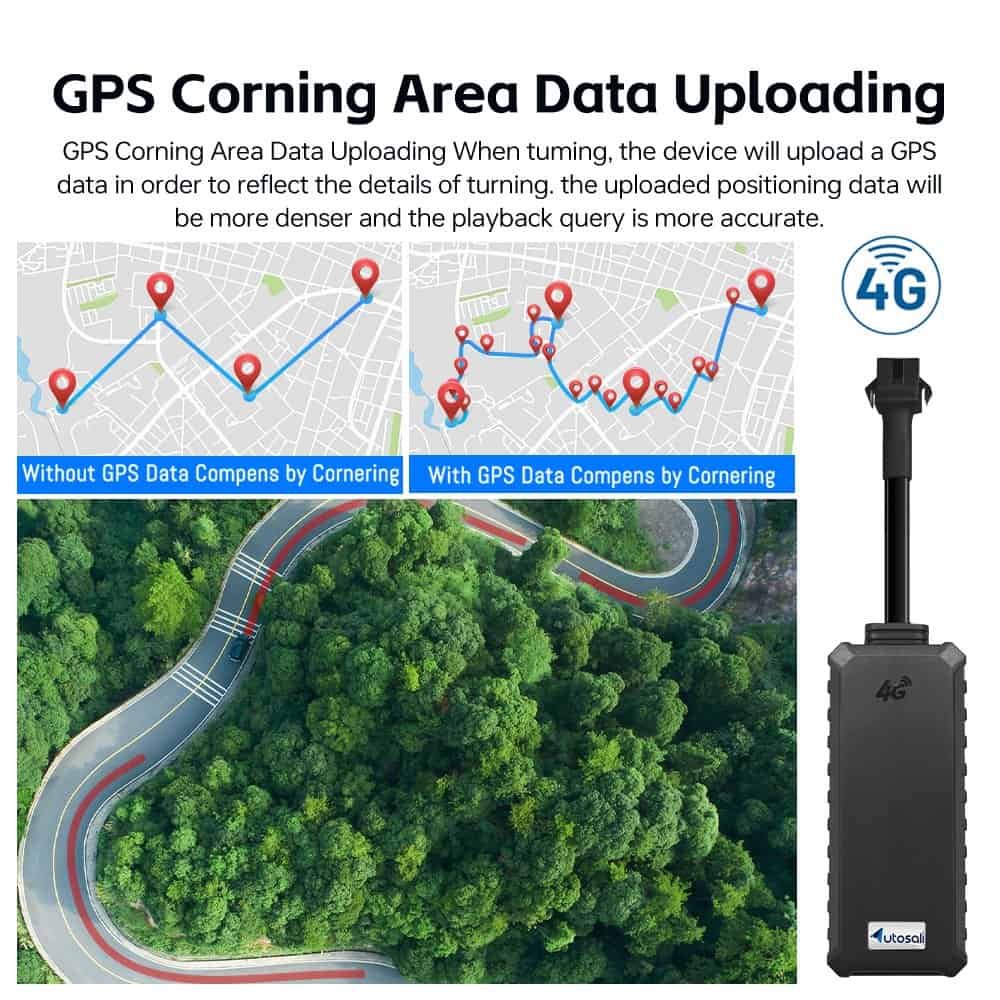

| 12 | Inflexion Upload | When the angle that vehicle turned is more than a setting scale it will send a locationdata soon to optimize the playback. |
| 13 | EPO Located For Assistance | The terminal supports the EPO assisted positioning function to enhance the positioning effect. |
| 14 | AGPS | Support AGPS, Capture signal quickly. |
| 15 | OTA | The software can be upgraded remotely and continuously optimized and updated toachieve a better user experience. |
