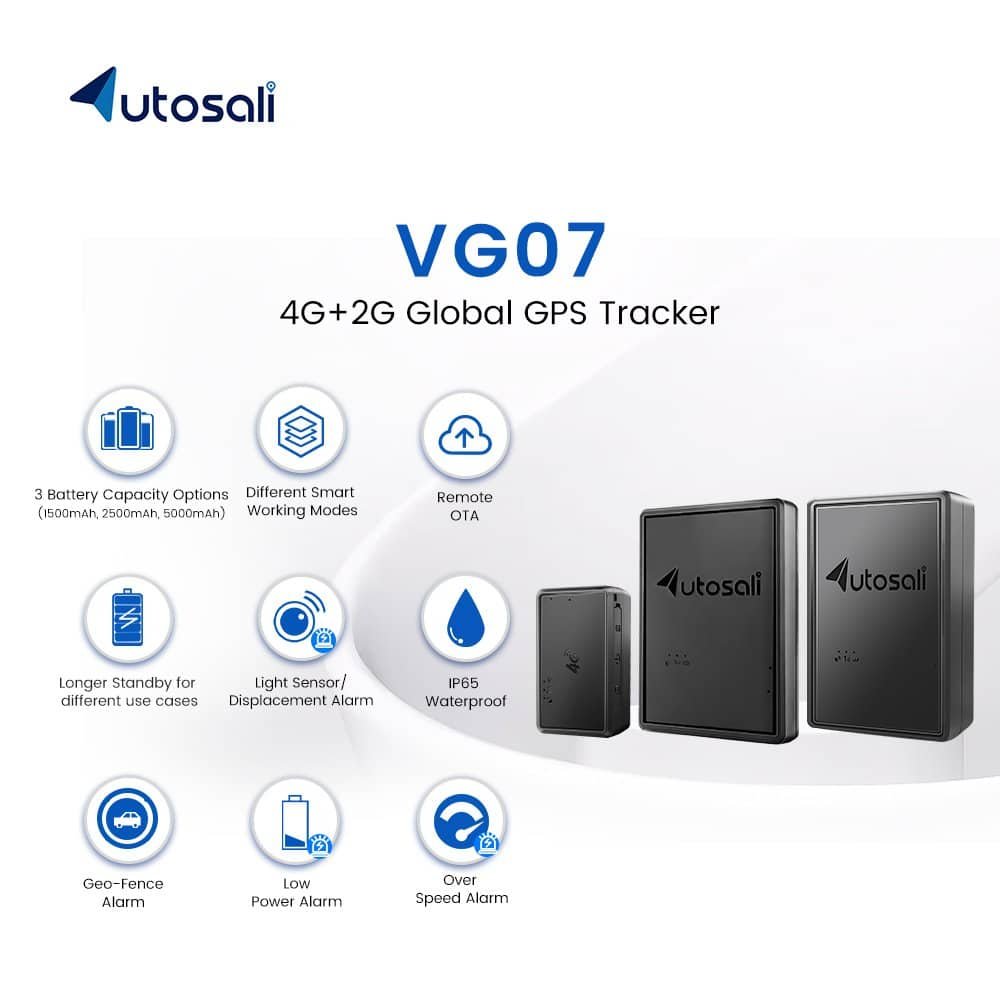

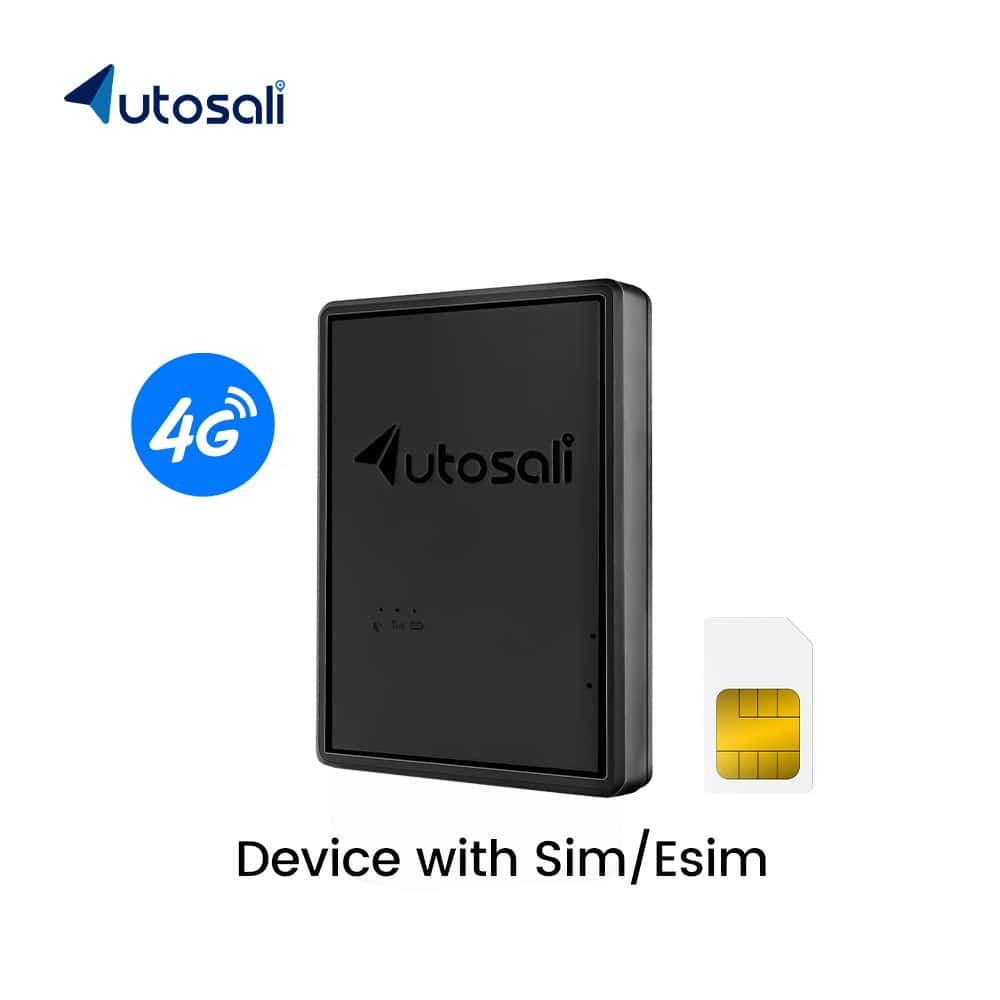

Autosali 4G VG07 ABC GPS Tracker with Long Standby

	Accurate real-time position information
Mini size, easy for carrying
	The label of back side could be customized

CLASS	FUNCTION	DESCRIPTION
Electrical Features	Mode of Power supply	Supply of storage battery
	Operating voltage	DC 3.4V - 4.5V
	Working current	4V/Average 40mA
	Sleep current	4V/Less than 6mA
	Built-in battery capacity	1500mAh (polymer battery)-VG07A; 2500mAh (polymer battery)-VG07B; 5000mAh (polymer battery)-VG07C
	Charge time	≈2.5 hours
Communication Features	GSM/2G	850/900/1800/1900MHz
	LTE-FDD/4G(SA)	B1/B2/B3/B4/B5/B7/B8/B28/B66
	Antenna	FPC
	Communication module chip	SIMCOM 7670
	Range of operating temperature	-20℃ - 75℃
	Range of storage temperature	-30℃ - 80℃
	Range of operating humidity	10%-85% RH
Positioning Features	Positioning module chip	AT6558D
	Positioning mode	GPS&BDS
	Cold start time	32s
	Hot start time	1s
	Tracking sensitivity	-162 dBm
	Capture sensitivity	-147 dBm
	Antenna specification	Ceramic 18mm * 18mm * 4mm
	GPS frequency range	L1: 1575.42±1.023MHz
	Beidou frequency range	B1: 1561.098±2.046MHz
	Number of satellite channels	64
	Positioning accuracy	<10m（1σ）
	Timing accuracy	<30ns（1σ）
	Speed measurement accuracy	<0.1m/s（1σ）
	Maximum acceleration	4g
	Maximum speed	515m/s
	Maximum height	18000m

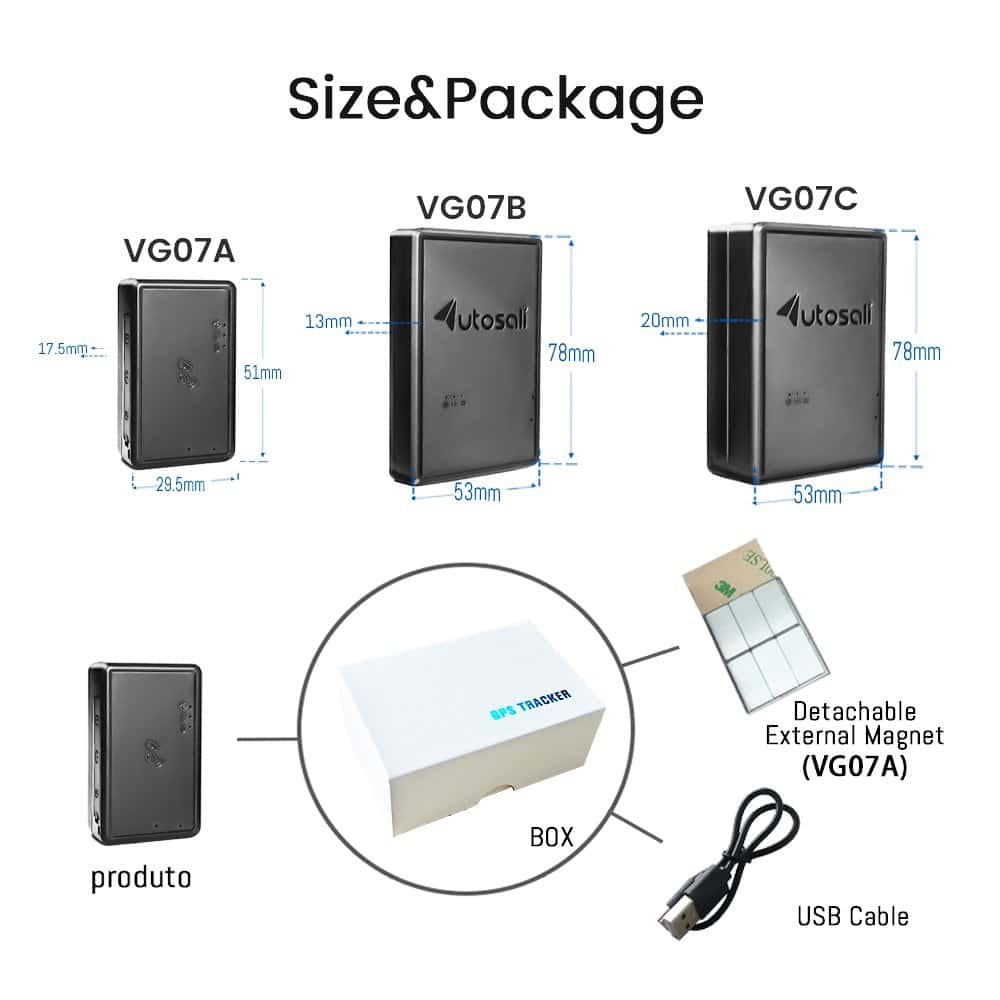

Outside specification	Size	51mm(L) * 29.5mm(W) * 17.5mm(H)-VG07A; 78mm(L) * 54mm(W) * 14mm(H)-VG07B; 78mm(L) * 54mm(W) * 21mm(H)-VG07C
	Weight	41g--VG07A； 96g--VG07B; 132g--VG07C
	Material	ABS

NO.	FUNCTION	DESCRIPTION
1	Real Time Tracking	More precise positioning with high performance chipset.Update position every 10 seconds with continuous tracking.
2	Historical Playback	Support up to 3 months' historical track, operate through platform or APP.

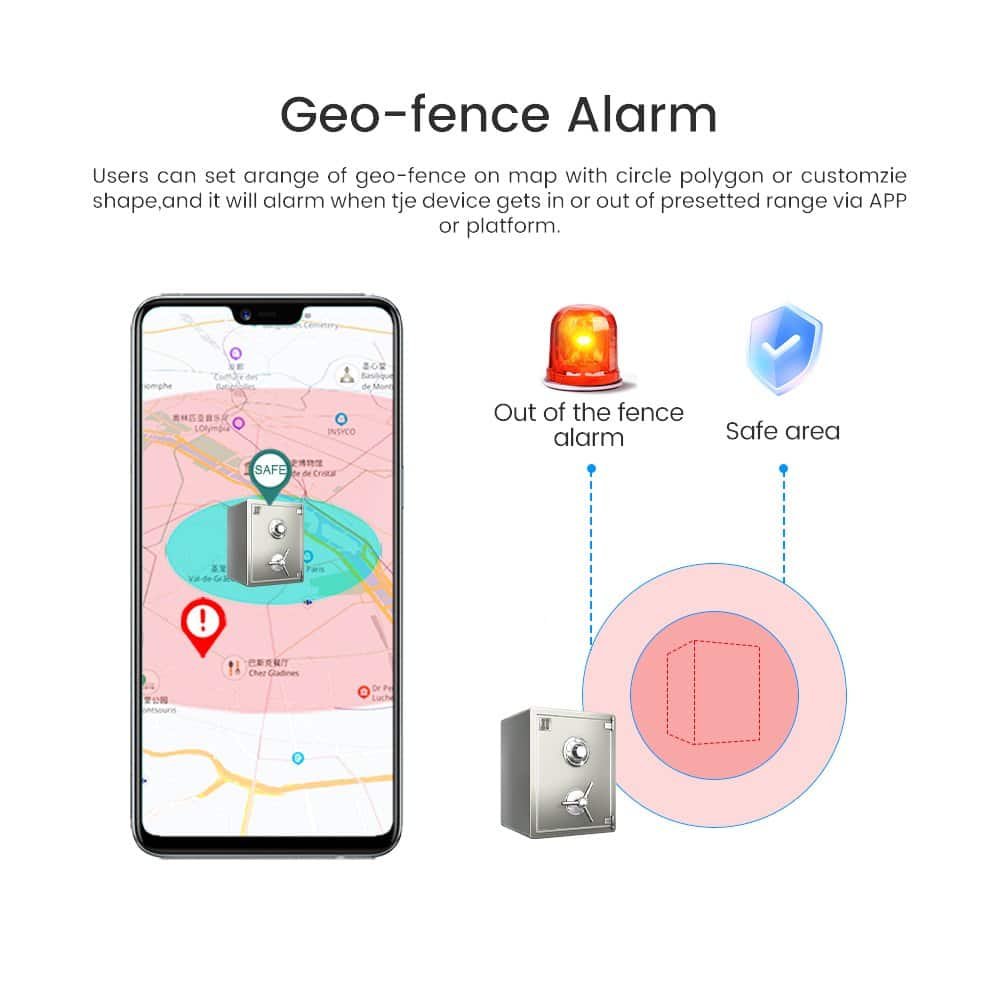

3	GEO Fence	After setting the area of the GEO Fence, APP will receive an alarm when entering or exiting this fence.
4	Over-speed Alarm	When vehicle is over speed, device will upload an alarm to the server.
5	Low Battery Alarm	You will receive a low battery alarm if the device battery low than 20%.

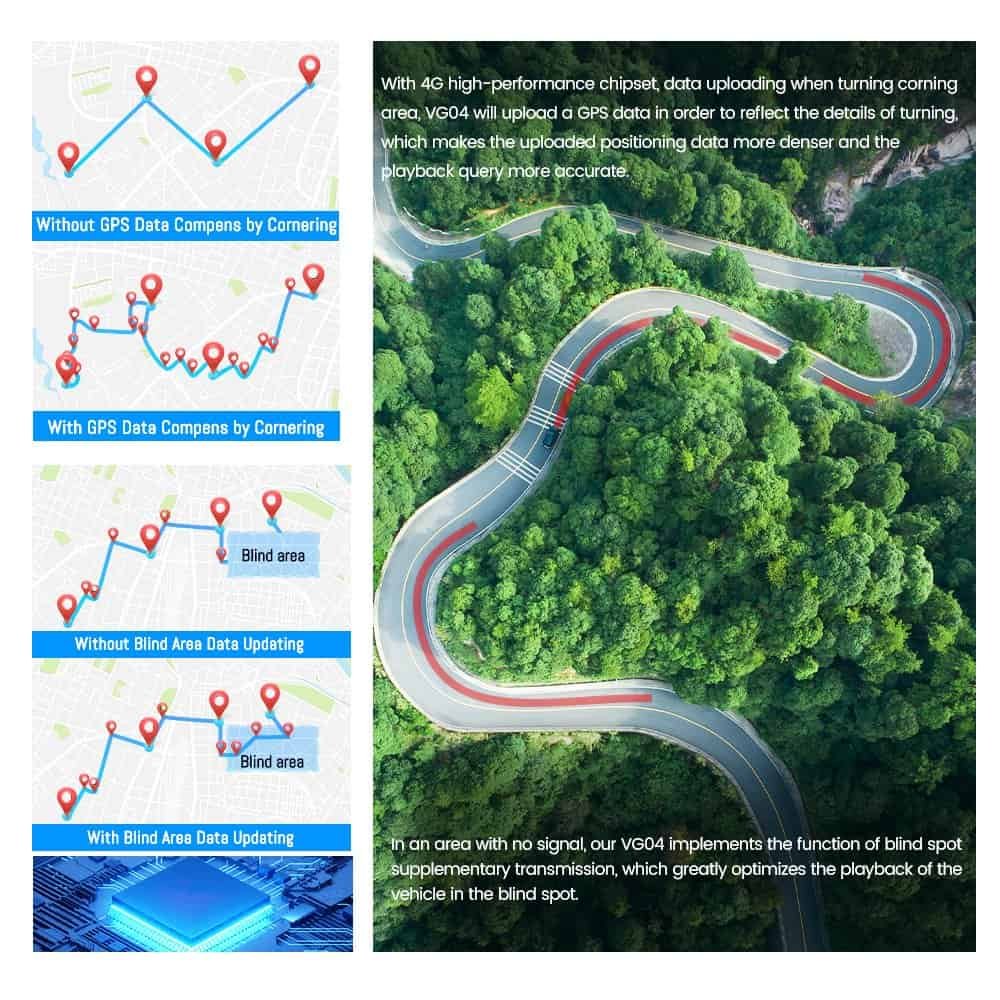

6	Blind Area Data Upload	Data will be stored up to 5000pcs in places with poor signal, and upload stored data when signal is good.
7	Inflexion Upload	When the angle that vehicle turned is more than a setting scale it will send a location data soon to optimize the playback.
8	EPO Located For Assistance	The terminal supports the EPO assisted positioning function to enhance the positioning effect.
9	AGPS	Support AGPS, Capture signal quickly.
10	OTA	The software can be upgraded remotely and continuously optimized and updated to achieve a better user experience.

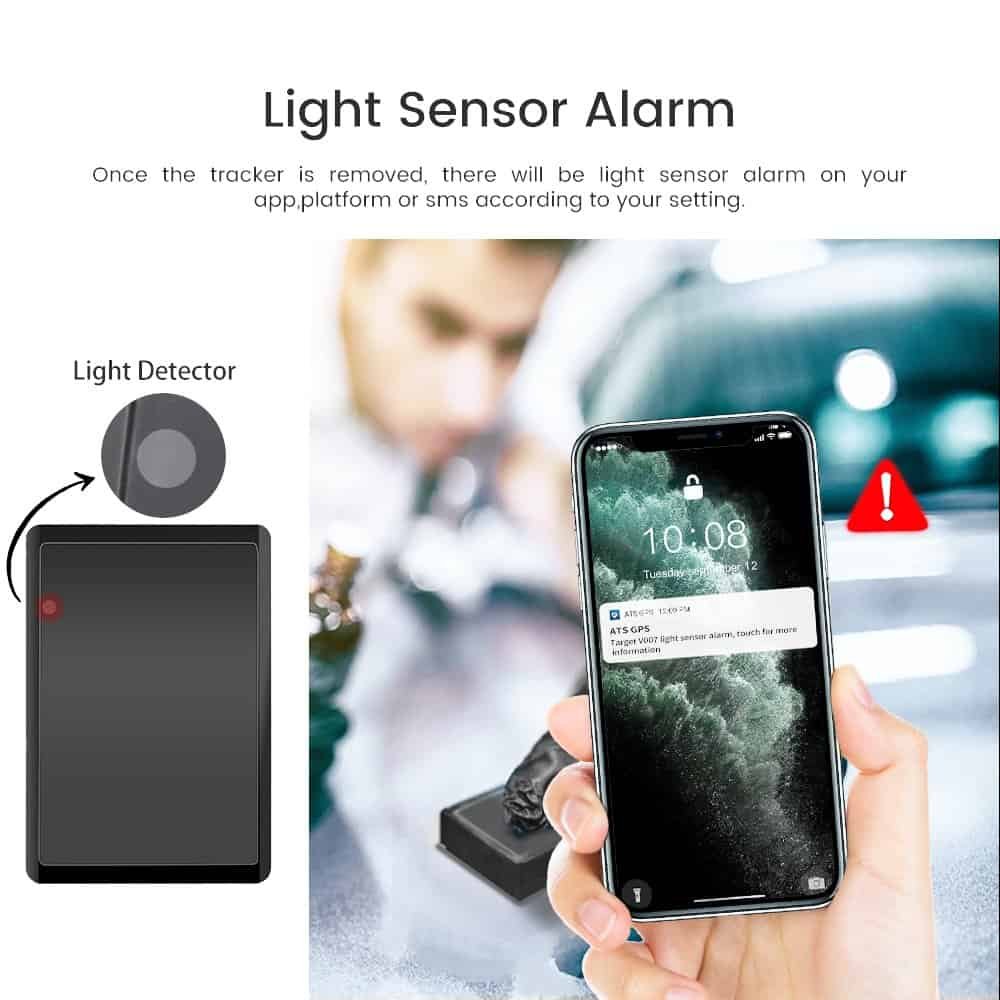

11	Light Sensor/Tear Down Alarm	Remove the shading strip and after installing the device, the device will trigger an alarm when it is removed and sees light. This function is turned on by default.
12	Driving Behavior Analysis	The driver’s behavior report, such as rapid acceleration/deceleration and sharp turn，could be detected and generate on platform, see the overall behavior of your fleet.(This function can be turned on or off)

1
2

1
2

Model	VG07A, VG07B, VG07C
Size	51mm(L) * 29.5mm(W) * 17.5mm(H)–VG07A, 78mm(L) * 54mm(W) * 14mm(H)–VG07B, 78mm(L) * 54mm(W) * 21mm(H)–VG07C
Wight	132g–VG07C, 41g–VG07A, 96g–VG07B
Built-in battery	1500mAh–VG07A, 2500mAh–VG07B, 5000mAh–VG07C
Charge Time	≈2.5 hours
Frequency Bands	GSM/2G 850/900/1800/1900MHz, LTE-FDD/4G B1/B2/B3/B4/B5/B7/B8/B28/B66

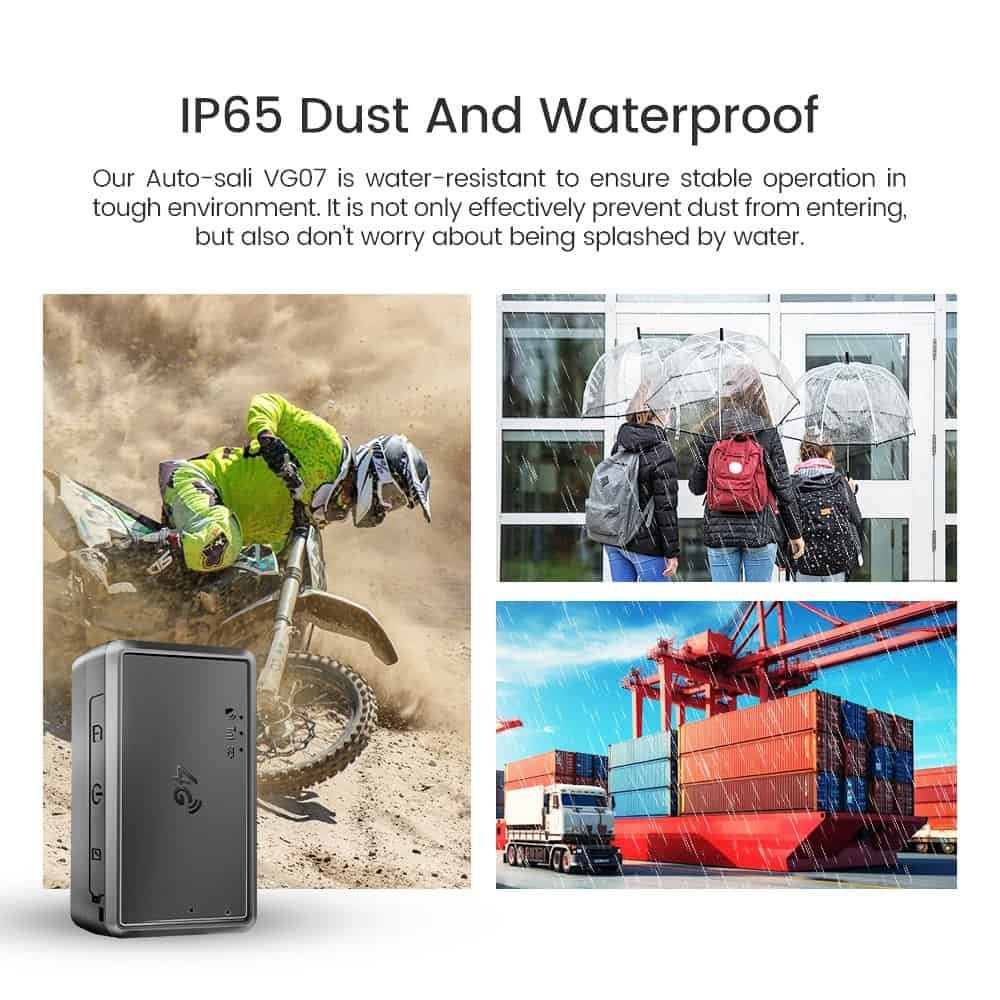

IP Grade	IP65
